Dual Head Corner Insertion Machine

Model: V-DH-CIM-5

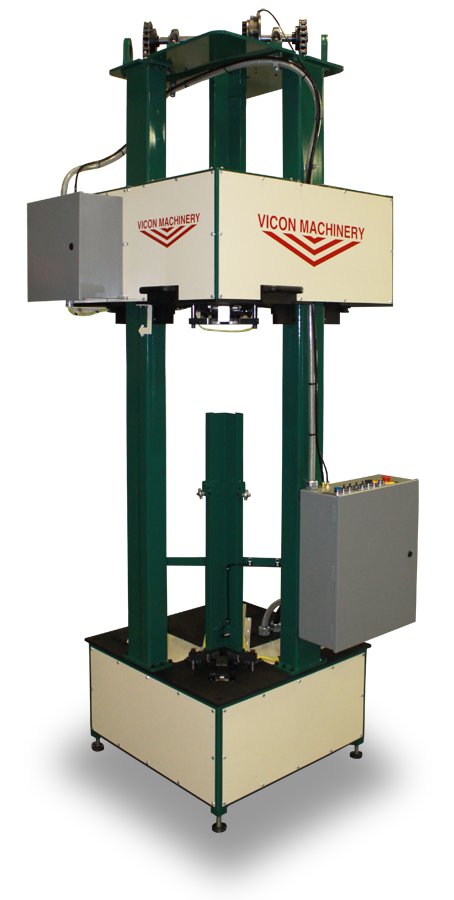

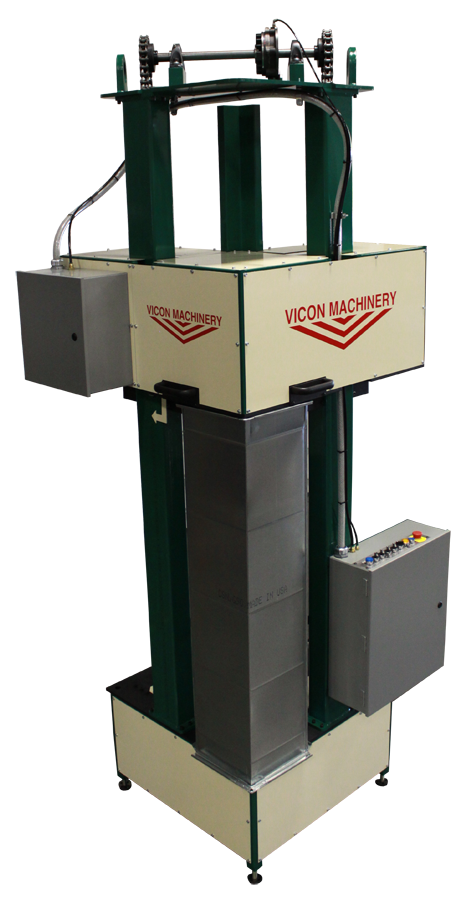

Vicon Dual Head Corner Insertion Machine

The Vicon Dual Head Corner Insertion Machine inserts and crimps stackable bolt connection corners into straight duct with T25-a or T25-b flanges. The Vicon Dual Head Corner Insertion Machine handles ducts of 26 to 16 gauge galvanized in lengths ranging from 32” to 56” with quick and simple adjustments. Truly the most reliable and rugged machine available.

Features & Benefits
  • 26 to 16 gauge capacity
  • Minimum straight duct length 32”
  • Maximum straight duct length 56”
  • Heavy duty tubular frame structure design
  • No tools required for changing duct lengths
  • Available tooling for T25-a or T25-b corners
  • Duct connector types TDX®, TDC®, TDF®
  • Compatible with most brands of stackable corners
  • Auto or manual control functions
  • Top and bottom head can be operated independently
  • Low corner quantity alarm sensor eliminates crimping without the corner
  • Built in quick leveling system for easy installation
  • Easy removable access covers for maintenance and cleaning
  • Voltage 110/1/60 Hz
  • Air requirement: 100 PSI
  • Optional six foot (6’) capacity machine available upon request
  • Pit dimensions provided upon request
