Pneumatic Cheek Bender

Model: V-2418-CB
Model: V-2418-CB-BP

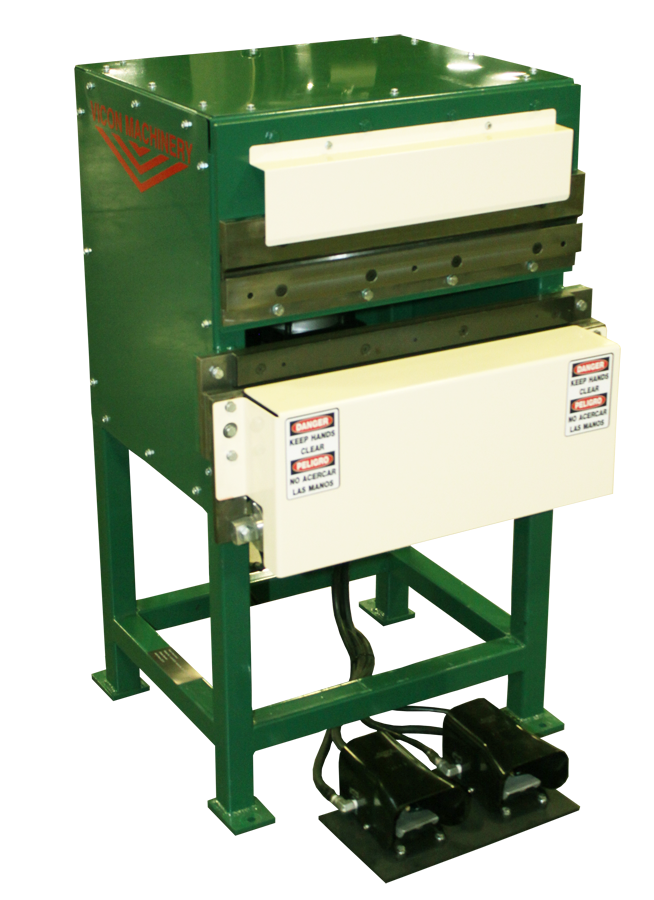

Vicon Cheekbender

The Vicon Cheek Bender will form 1/4" and 7/16" male quarter edge flanges to the cheeks of your fittings. Optional Button Punch lancing feature is available.

Features & Benefits
  • Designed to form a 90° flange on either side of the unit (Optional Button Punch available)
  • 18 Gauge mild steel maximum capacity
  • 24" wide bending capacity

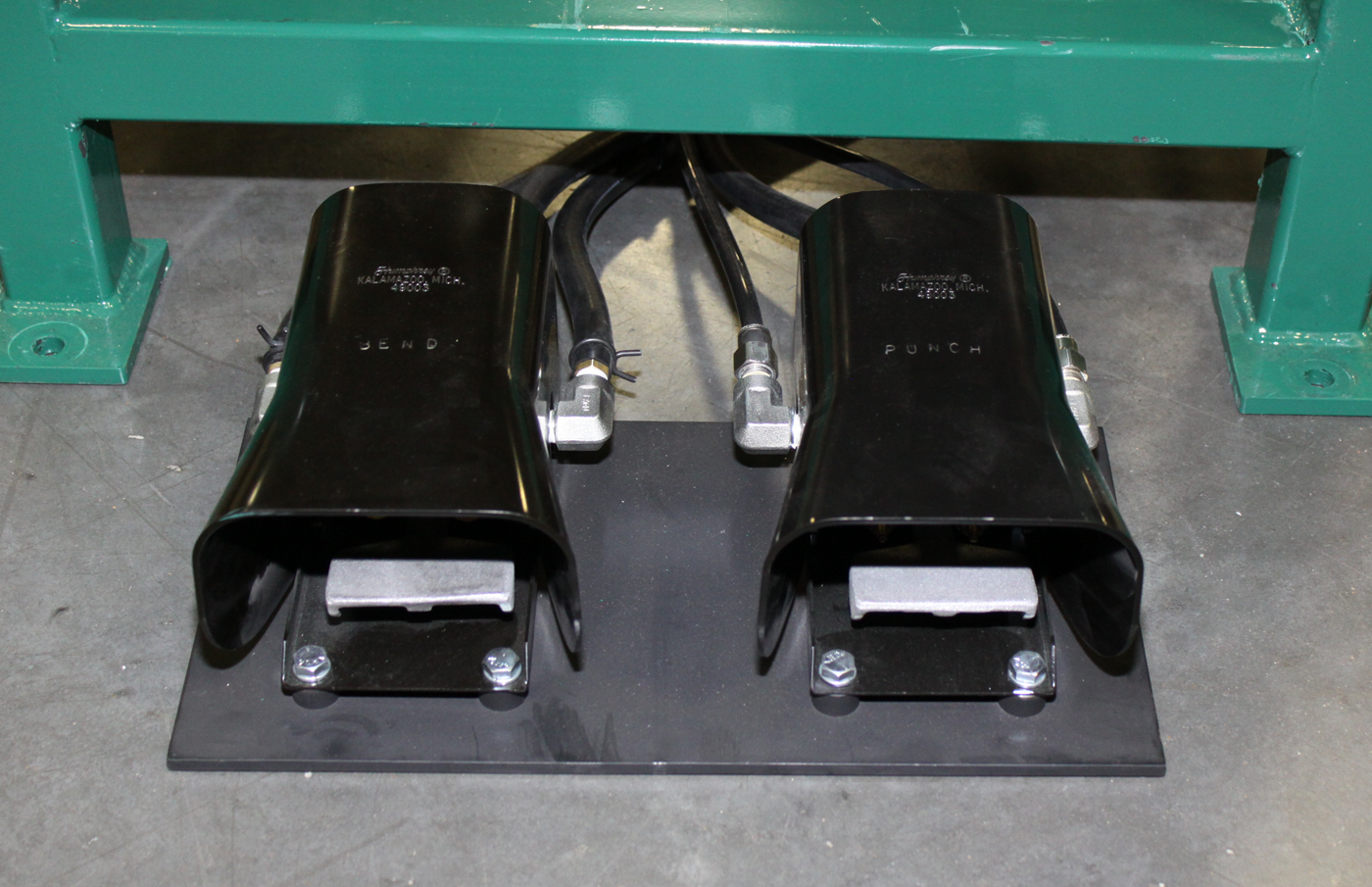

  • Foot pedal control
  • Open ended allowing formation on either side as well as longer flanges with additional cycles
  • Welded tubular frame
  • Replaceable, hardened wear plate for use with plasma cut edge
  • Slide out gauge allows for 1/4" or 7/16" bend
