HVAC 510 Laser Cutting Table

Standard Sheet Metal Cutting System

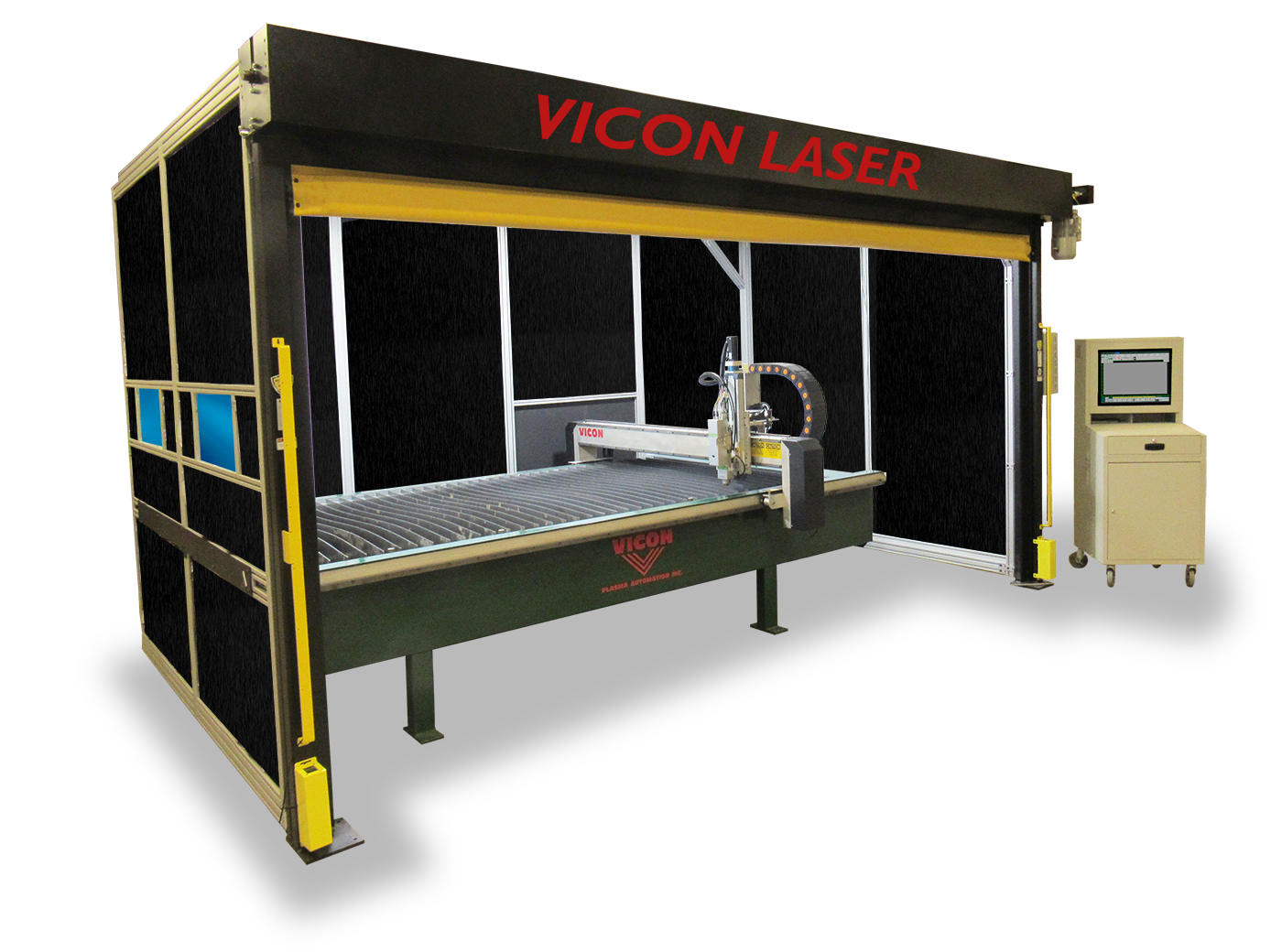

HVAC 510 Laser Cutting Table

This rugged yet flexible laser cutting machine is the solution for the optimal processing of HVAC duct fittings. Fast, clean and accurate, this CNC cutting system drastically reduces waste material and operating costs resulting in greater profitability.

Exclusive dual rack and pinion drives provide superb positioning accuracy for unmatched part quality. Material stops guide the operator for loading sheets eliminating error and material waste.

Features & Benefits
  • Standard 5' x 10' cutting area with options for up to 5' x 20' cutting area to accommodate various shop requirements

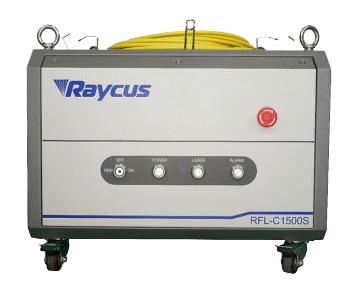

  • 1500 Watt Raycus Fiber Laser Power Supply
  • Computer Controlled Auto Focus Cutting Head (Switzerland Raytools AG)
  • Vicon Programmable Capacitive Laser Height Control
  • Vicon Laser Safety Full Machine Enclosure
  • PC Controller with Vicon Cutting Software
  • Heavy Duty one-piece steel frame cutting table
  • Light-weight aluminum gantry, double rack and pinion drive with dual high-speed digital motors
  • Traversing speeds up to 2,000 IPM

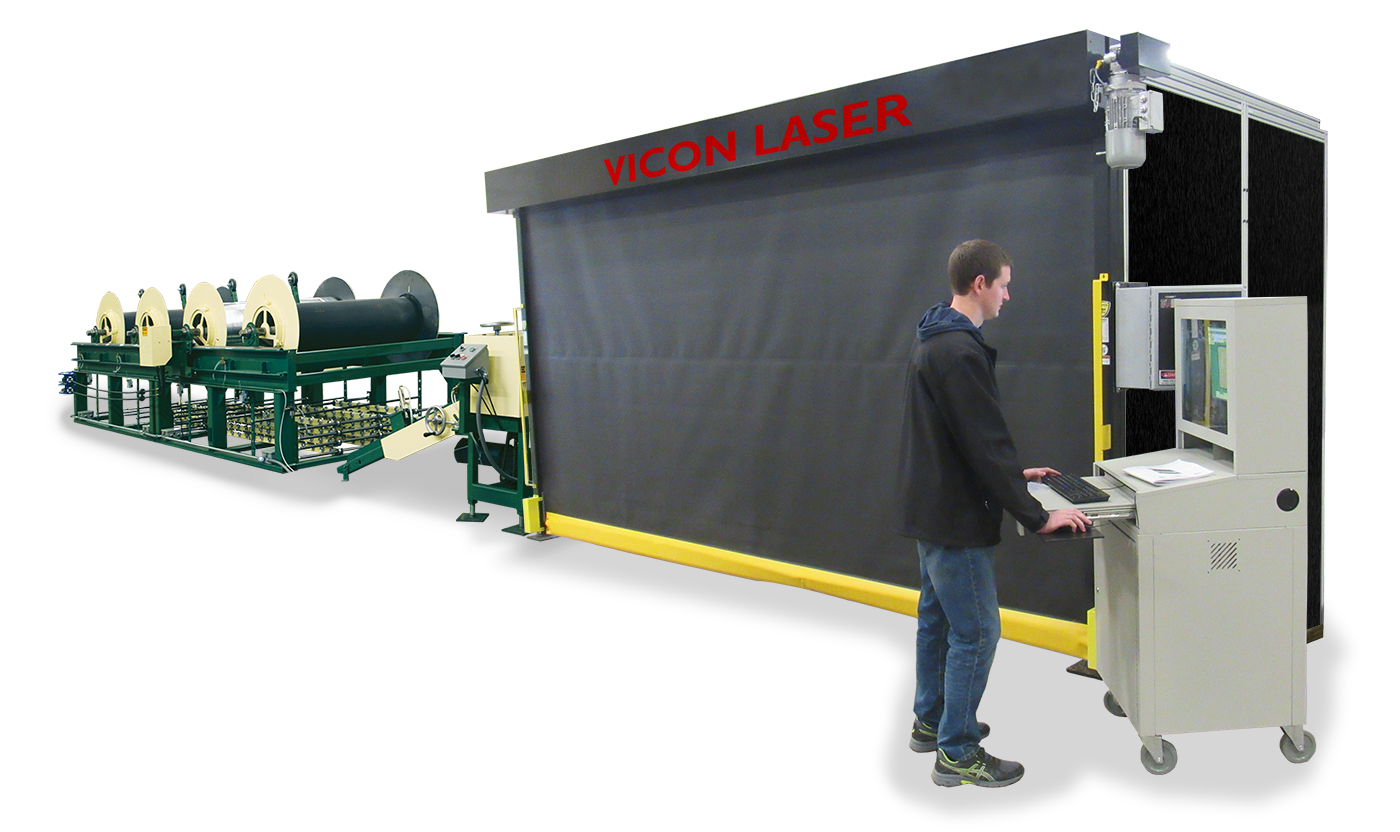

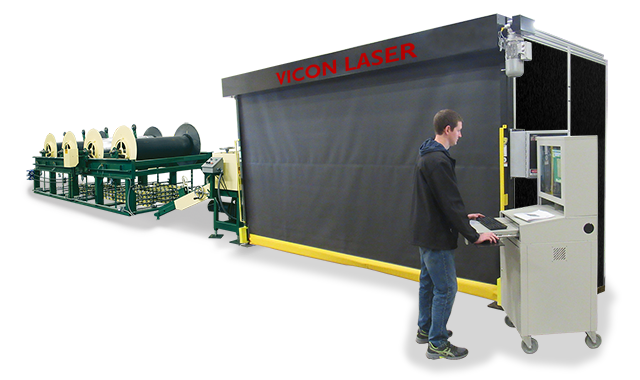

  • Safety Enclosure: protects operators from application hazards while restricting access of machine operation with safety rated controls and viewing windows.
  • Coil feed Capability
